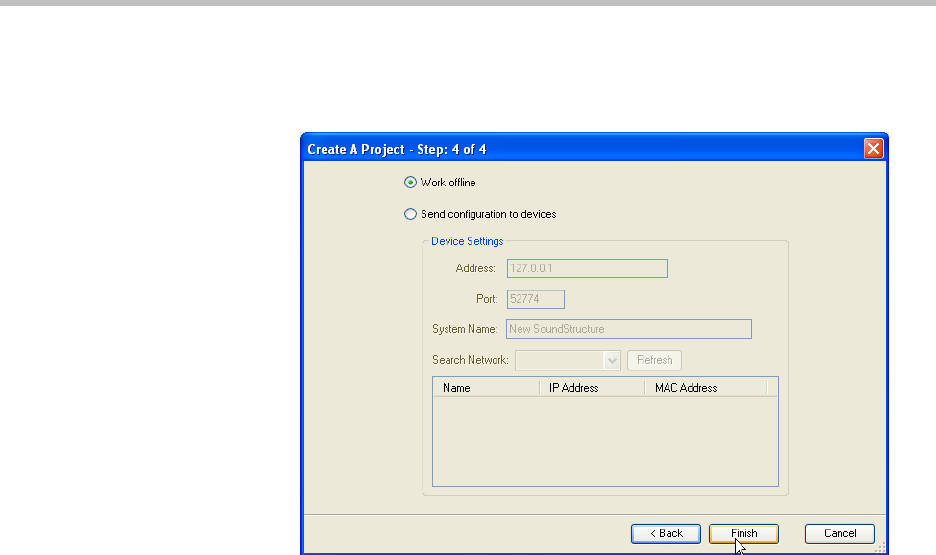

Step 4 - Work Offline Or Online
As there are many matrix settings to change, we’ll work off line and adjust the
crosspoints.
