Design Guide for the Polycom SoundStructure C16, C12, C8, and SR12
9 - 20
8 Microphones, Video, And Telephony Application
This example creates a typical mono conferencing system with eight table
microphones, mono program audio, a mono video codec, and a single audio

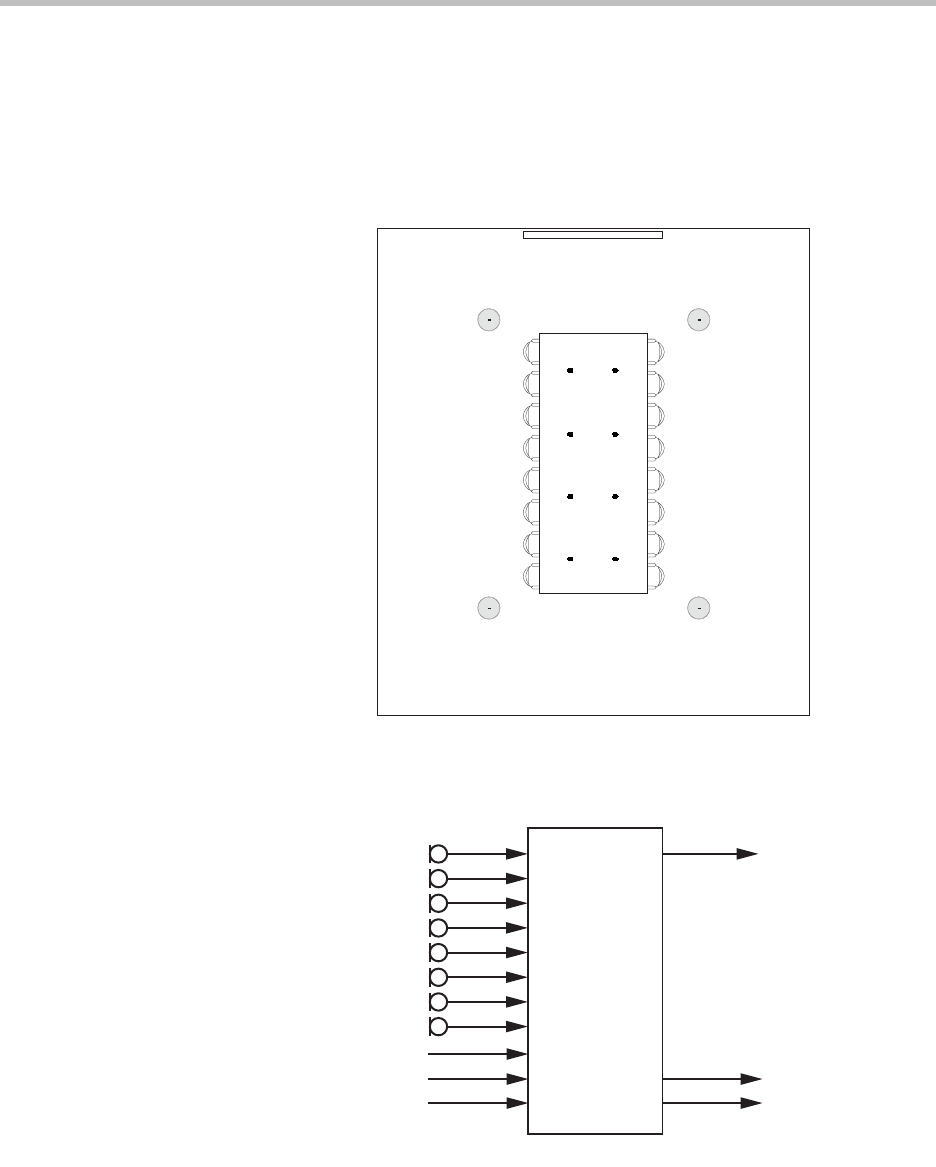

amplifier zone. The room may look similar to the reflected ceiling plan shown
in the following figure with in-ceiling loudspeakers, a video screen in the front
of the room, and microphones distributed on the table.
The block diagram of this system is shown in the following figure. The channel
names are labeled with the virtual channel names that are created by default
by the SoundStructure Studio software.
POLYCOM
POLYCOM
POLYCOM
POLYCOM
POLYCOM
POLYCOM
POLYCOM
POLYCOM
ABC
ABC
ABC
ABC
SoundStructure
C12
Table Mic 1
Table Mic 2
Table Mic 3
Table Mic 4
Table Mic 5
Table Mic 6
Table Mic 7
Table Mic 8
Program Audio
VSX8000 In
Phone In
VSX8000 Out
Phone Out
Amplifier
