Advanced Applications
9 - 67

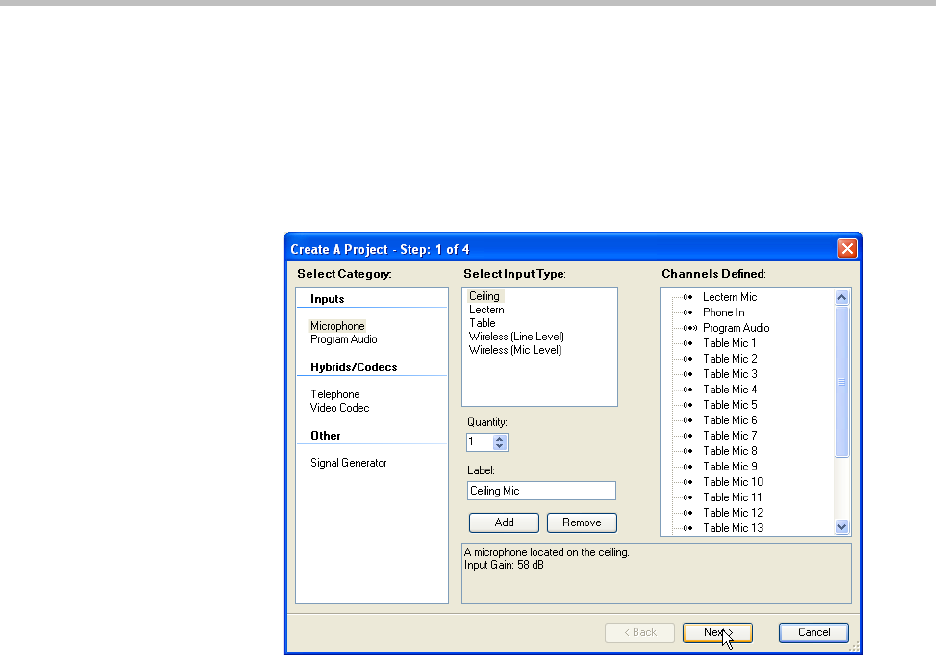

SoundStructure Studio Steps
Step 1 - Select Inputs
The system is designed with 16 table microphones, one lectern mic, one wire-
less mic with line level input, one stereo VSX8000 video codec, and a single
telephony interface.
