Design Guide for the Polycom SoundStructure C16, C12, C8, and SR12
9 - 30

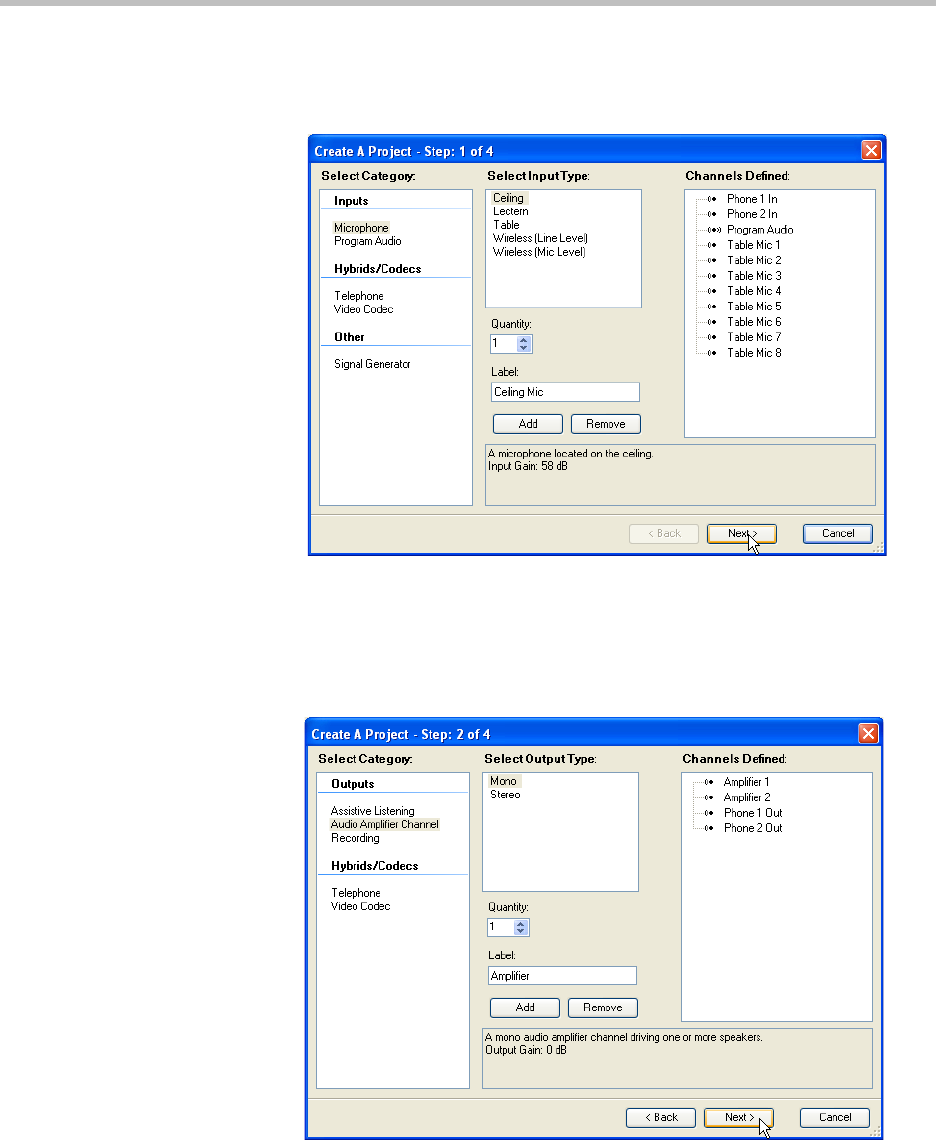

Step 1 - Select Inputs
Select 8 table microphones, a stereo program audio source, and two telephone
interfaces.
Step 2 - Select Outputs
Select two mono amplifiers as the output devices for this example. The tele-
phone outputs are automatically defined when their respective inputs are
added.
- Design Guide 1
- C16, C12, C8, and SR12 1
