Connecting Over Conference Link2
6 - 27

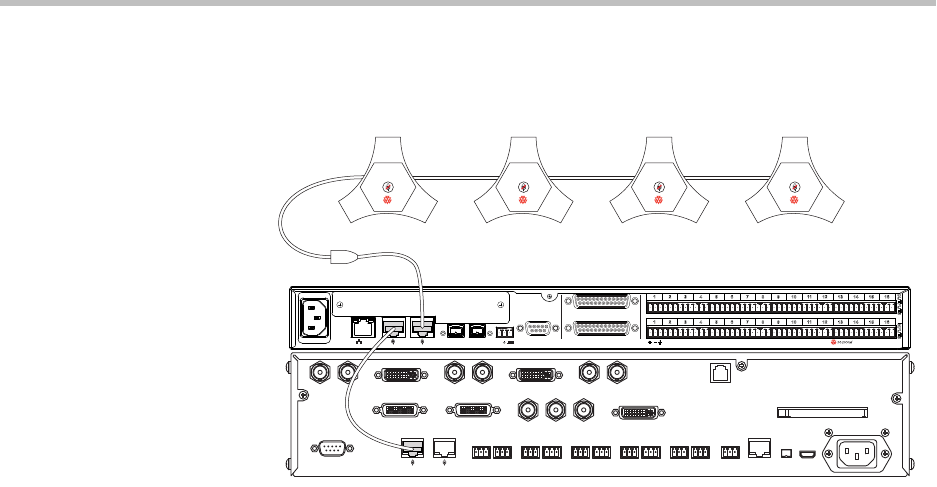

The digital microphones should be connected to the right rear CLink2 port and
the HDX video codec should be connected to the left CLink2 port as shown in
the following figure.
PIN 2: TXD
PIN 3: RXD
PIN 5: GROUND
PIN 7: CTS
PIN 8: RTS
LAN
C-LINK2
OBAM IR
RS-232
REMOTE CONTROL 2
IN OUT
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
OUTPUTS INPUTS
SoundStructure C16
TM
12V
REMOTE CONTROL 1
POLYCOM POLYCOM POLYCOM POLYCOM
