Advanced Applications
9 - 25

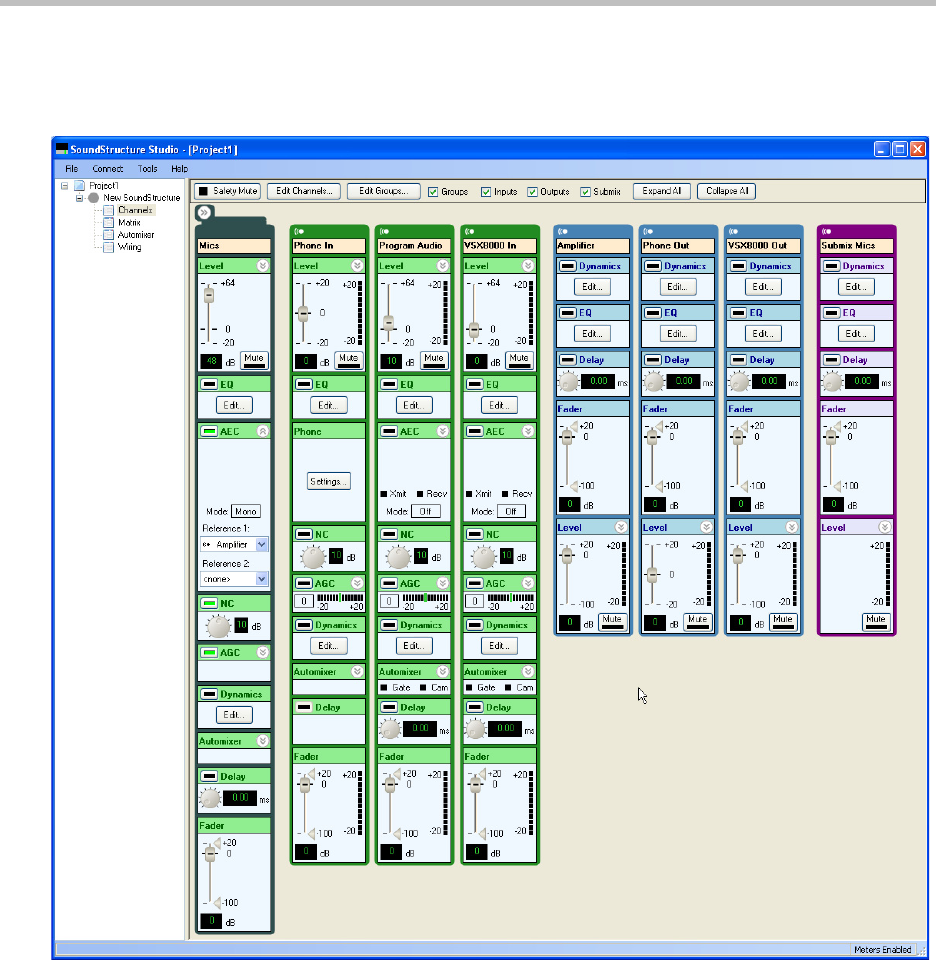

By default the AEC reference has been set to the mono virtual channel “Ampli-
fier” because this audio includes all the remote audio that need to be echo
cancelled.
