Chapter 1- Hardware Description

1-14

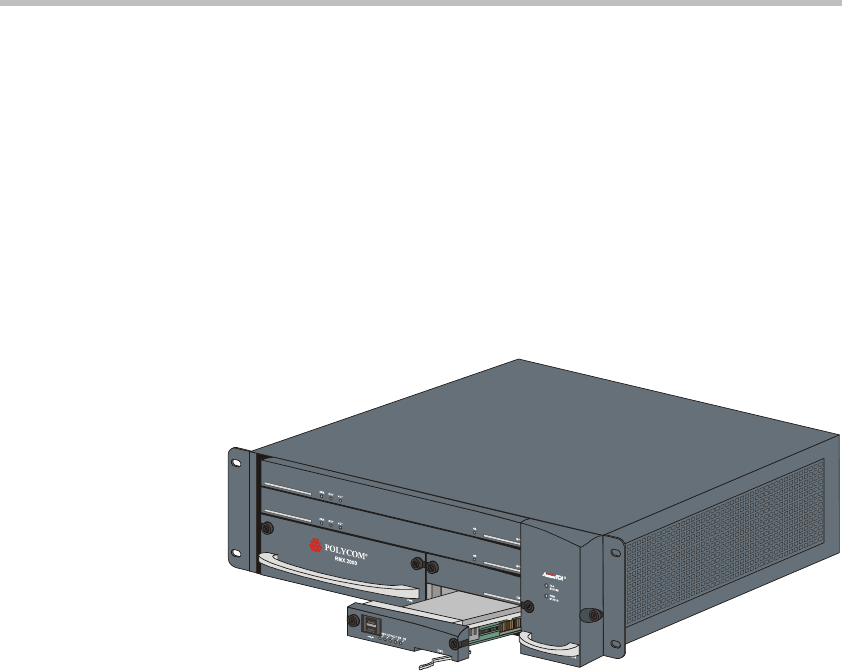

Replacing the CPU (CNTL) Module

The CPU module is the management system of the RMX 2000. Use the

following procedure to replace a CPU (CNTL) Module:

1 Ensure that power switch to the RMX 2000 is turned OFF (O).

2 Unscrew the screws on the front panel of the RMX 2000 that secure

the

CPU (CNTL) Module.

3 Use the metal ejectors to pull the

CPU (CNTL) Module out of its slot

in the Backplane.

4 Carefully slide the

CPU (CNTL) Module out through the front panel.

5 Slide in the replacement

CPU (CNTL) Module.

6 Push the

CPU (CNTL) Module firmly into the Backplane, making

sure it is properly seated in its slot.

7 Ensure that the metal ejectors are fully retracted into their housings.

8 Tighten the screws on the front panel of the RMX 2000 that secure the

Functional

CPU (CNTL) Module.

9 Turn ON the RMX 2000.
