Polycom RMX 2000 Hardware Guide

1-5

RMX 2000 Components

On the RMX 2000 modules are located on both the front and rear of the

MCU as listed in Table 1-2, "Polycom RMX 2000 Component Description".

For more information see the descriptions of the "RMX 2000 Front Panel”

on page 1-5 and "RMX 2000 Rear Panel” on page 1-7.

RMX 2000 Front Panel

Figure 1-1 shows the front panel of the RMX 2000. The front panel

provides access to the RMX 2000 main CNTL modules, MPM modules,

Power Supply drawer, Status LEDs, and Fans.

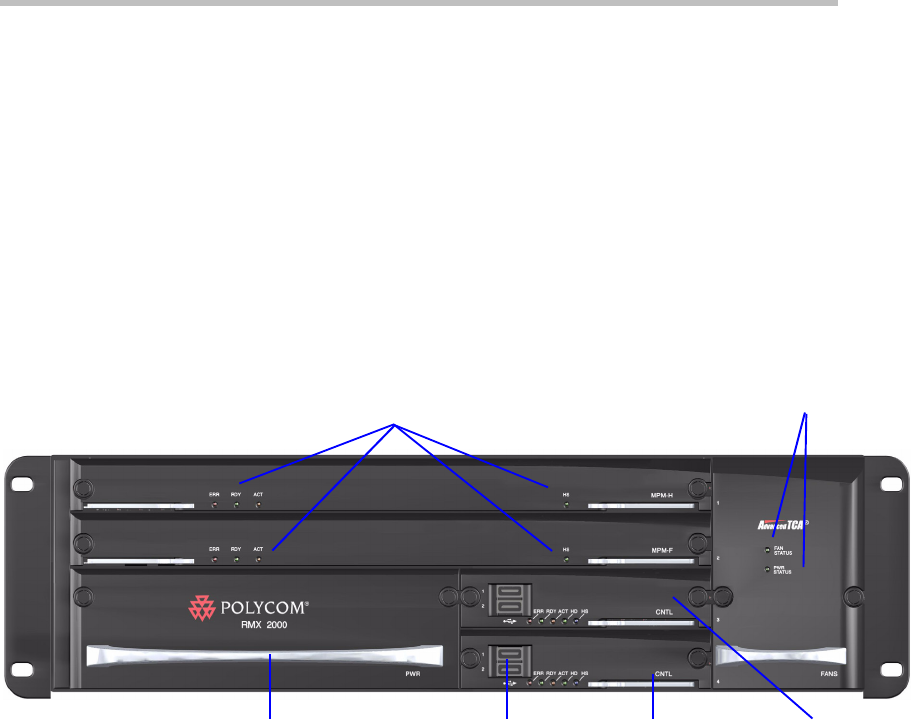

Figure 1-1 RMX 2000 Front Panel

MPM Boards & LEDs

Fan drawer & Power

LED

Power supply drawer

Control Unit & LEDs

USB ports - are only

for debugging and not

for customer use

2nd CPU & LEDs
