Installing KIRK Wireless Server 6000 and KIRK Media Resource

4–7

Installing the KWS6000/KIRK Media Resource

The KWS6000/media resource is suitable for mounting indoors on a wall.

1 Mount the KWS6000/media resource on the wall, using the anchors and

screws provided.

Note: When you place the KWS6000/media resource on the screws,

ensure that the screws do not touch the printed circuit board.

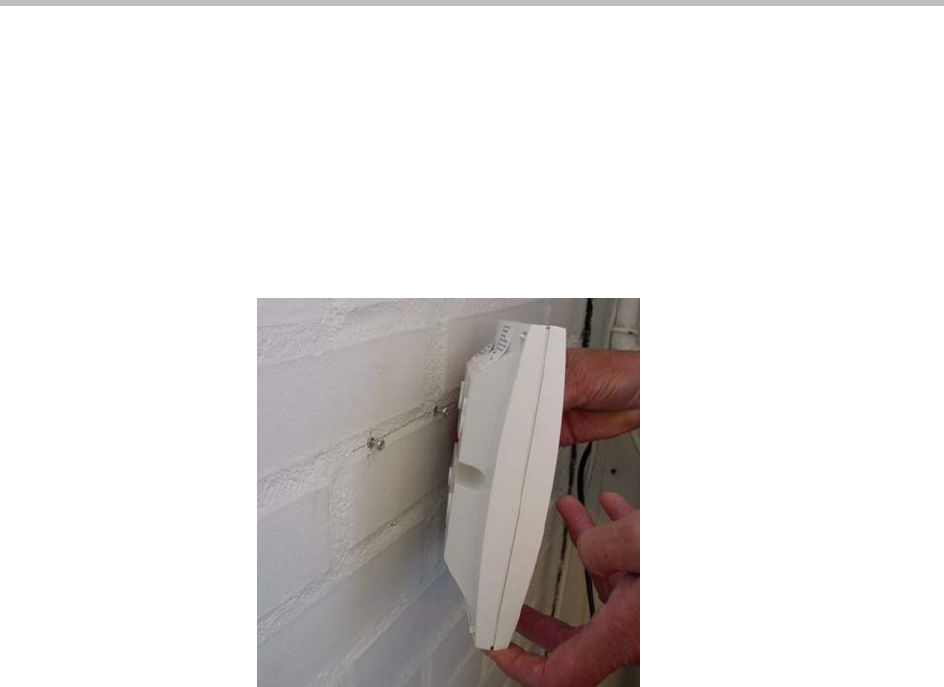

Figure 4-3 KWS6000/Media Resource Wall Mounting

2 Connect the wire into the RJ45 plug on the KWS6000/media resource.
